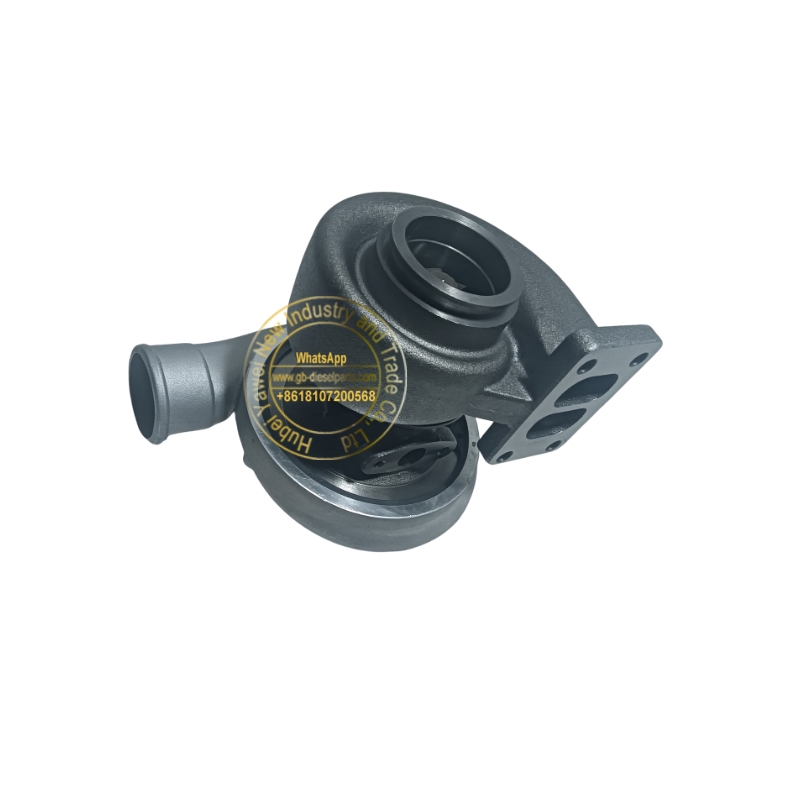

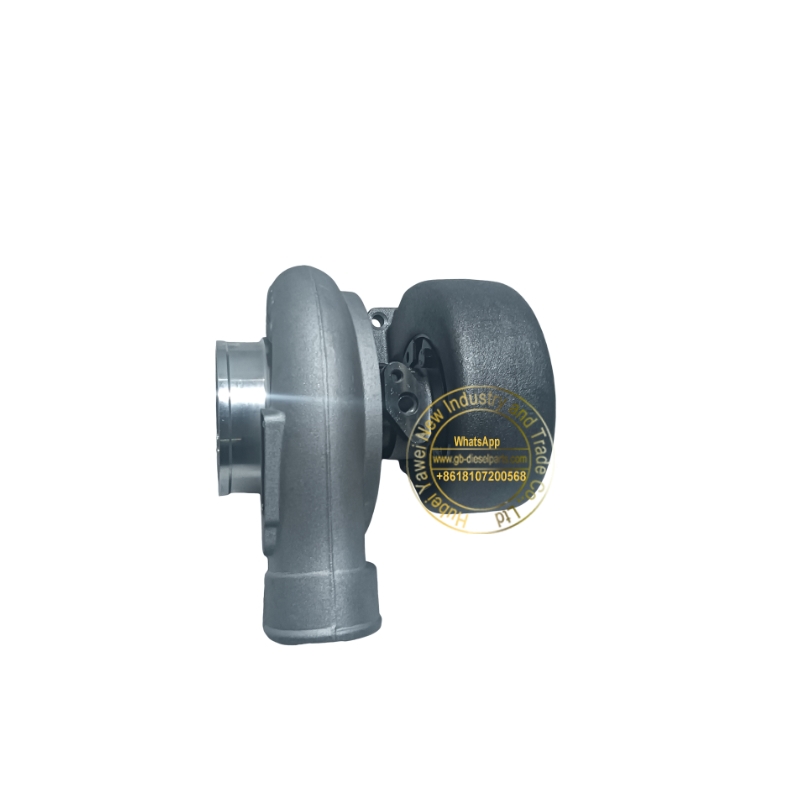

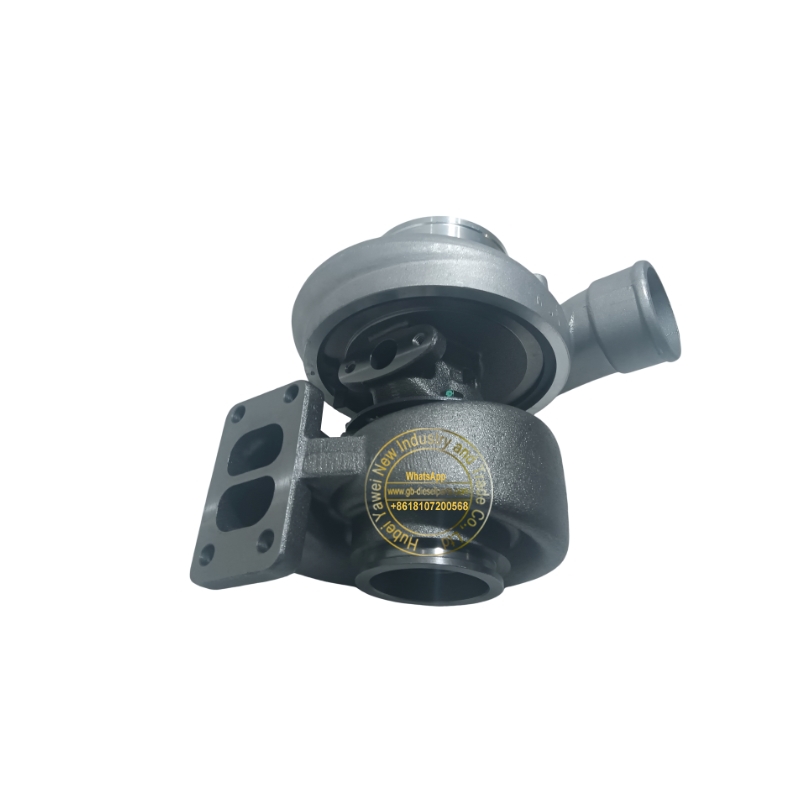

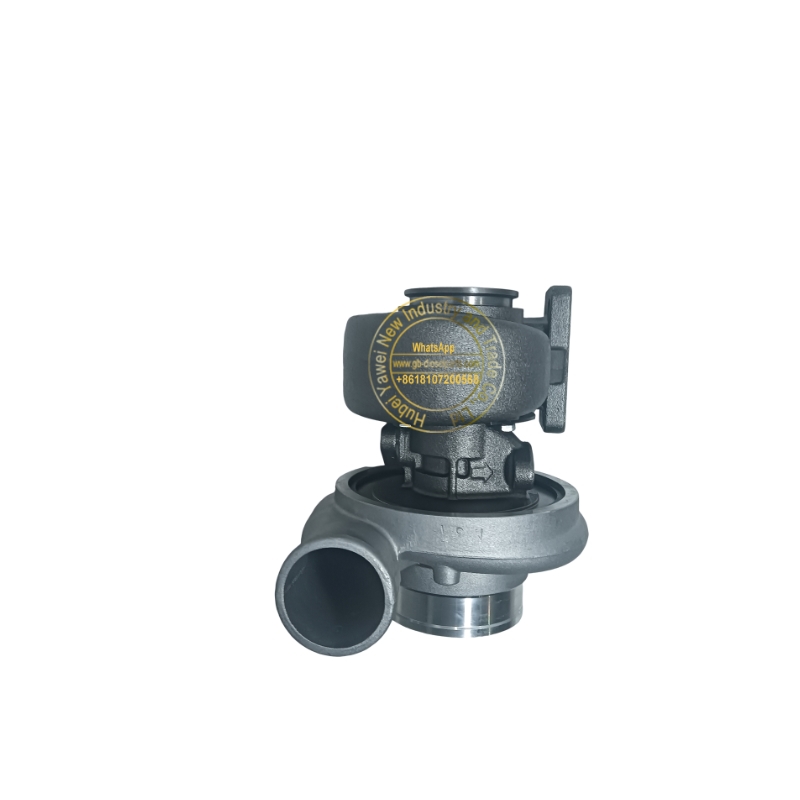

Cummins Holset Hx35 turbocharger 4033369 /3779711

Fits the following:

Part Number: 4040605
Interchangeable Number: 3779711, 4033369H, 4033369HX
OEM Number: 3772651, 4033369, 4040606, 4044101, 4047470, 504101887, 504176062, 504236456, 504369120
Turbo Model: HX35-A77J68GAG/A70Q86FE16DA, HX35
Manufacturer: Holset

Year: 2004-07
Engine: 6 CYL 4V, NEF
Engine Manufacturer: Iveco
Displacement: 6 Cylinders
Fuel: Diesel

Angle α (Compressor Housing): 220°
Angle β (Turbine Housing): 360°
Back Plate: 3530923 (1154351300)
Bearing Housing: 4032032 (4027443, 4032218)(84.50 mm)(Oil Cooled)
CHRA: 4030891 (4030891H)
Compressor Wheel: 3599650 (3599594)(Ind. 51.76 mm, Exd. 76.2 mm, Trim 5.15, 7+7 Blades, Super Back)
Gasket Kit: 3545575
Heat Shield: 3519304 (3519302)(1152301340)
Repair Kit: 4027448 (3575169)(1153035750)
Turbine Wheel: 3595832 (3519336)(Ind. 70 mm, Exd. 59.9 mm, Trim 10.82, 12 Blades)(1152301435)

Application:
2004-06 Iveco Various
2004-07 Iveco Earth Moving, Excavator
Forklift with Hatz Engine
Iveco Telehandler with 6 CYL 4V Engine
